Ultra-Low Quiescent Current, Output Voltage Selectable Function Expanded Lineup of Step-Down DC/DC Converter XC9276Series

Torex XC9276

Torex Semiconductor has launched the XC9276 as a new series of ultra-low quiescent current step-down DC/DC converter.

Torex - XC9276

The XC9276 Series is a 150 mA step-down synchronous rectification DC/DC converter which has an output voltage switch-over function with an ultra-low power consumption circuit and a PFM control.

The efficiency performance at a light load current is dramatically improved by implementing ultra-low power consumption circuits which has 200 nA consumption current, and PFM control method. Additionally two-preset output voltage switchover function is available with using VSEL pin.

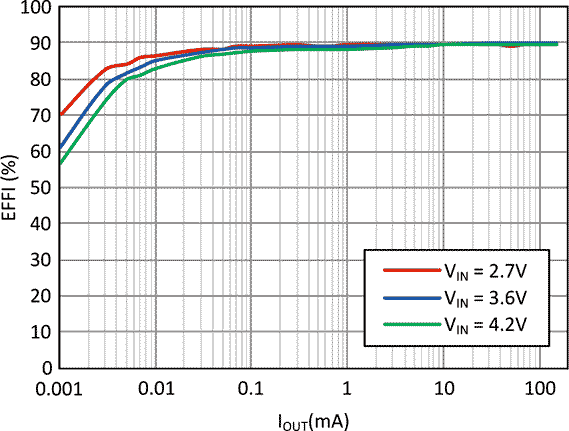

Efficiency vs. Load Current at Output Voltage of 1.8 V
Efficiency vs. Load Current at Output Voltage of 1.8 V.

This function can select an appropriate output voltage based on the MCU behavior mode and contribute a power consumption reduction for a total system. Due to these functions, XC9276 series are suitable for equipment which needs a high efficiency performance at a light load current, and a long-time battery life. XC9276 series are compatible to 2.2 µH inductor therefore it can reduce an output ripple voltage which is a negative side of PFM control method, and a PCB board area size.
