Integrated 6A Buck Regulator Delivers High Efficiency in a Low Profile

Murata MYTNA1R86RELA2RA

Murata introduced the world’s lowest-profile, most efficient, fully integrated 6 A buck regulator. The module’s footprint is 30 percent smaller than the nearest competitive solution and has a 25 percent lower profile without sacrificing efficiency.

The MYTNA1R86RELA2RA DC/DC converter is designed for 2-cell, 3-cell and 12 V point-of-load applications where high efficiency, a low profile and small solution size are critical. The buck regulator features an input voltage range of 6.0 V–14.4 V and a programmable output of 0.7 V–1.8 V at up to 6 amps. The buck regulator’s peak efficiency exceeds 90 percent for 12 V input to 1.8 V output.

Murata - MYTNA1R86RELA2RA

With dimensions of 9 mm × 10.5 mm × 2.1 mm (L × W × H), the module integrates all passive components, including bulk output capacitance, to meet exacting transient load requirements. As such, fewer additional external components are required for most applications. The module footprint is 30 percent smaller than the nearest competitive solution and has a 25 percent lower profile whilst efficiency is more than 10 percent higher than competing products. As the product requires fewer additional external components, the typical solution footprint is approximately 50 percent of any alternative product on the market.

Simplified circuit diagram
Simplified circuit diagram.

Due to the product’s unique power architecture, benefits include an approximate 5x reduction in input ripple, lower EMI and a wide temperature range of –40 to +105 °C with derating.

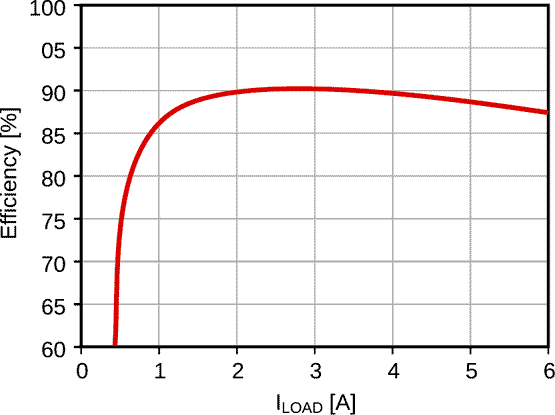

Efficiency Plot
Efficiency Plot.

Target markets and applications include telecoms, base stations, networking switches, routers, micro-servers, SSDs, PCIE add-in cards and high- performance mobile computing platforms. The MYTNA1R86RELA2RA will be sampling and in mass production in Q2 2020.
