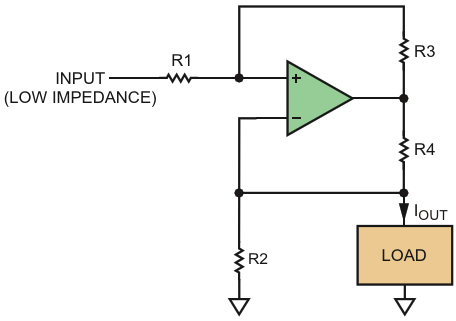

Howland current pump. Bipolar current output
| Authors | James Bryant |
| Main Document | Article «Current-Output Circuit Techniques Add Versatility to Your Analog Toolbox» |
| Description | Figure 9 |
| File Format / Size | PDF / 15 Kb |
| Document Language | English |
