A ±10-V VIN span is easily accommodated - if you can find a 15 MΩ precision resistor
| Authors | Stephen Woodward |
| Main Document | Article «Another weird 555 ADC» |
| Description | Figure 4 |
| File Format / Size | PDF / 18 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Another weird 555 ADC»
- Figure 1. Op-amp A1 continuously integrates the incoming VIN signal, thus minimizing noise. Conversion occurs in alternating phases, T- and T+. The T-/T+ phase duration ratio is independent of the RC time constant, is therefore insensitive to C1 toleranc
- Figure 2. Various conversion signals found at circuit nodes X, Y, and Z
- Figure 3. Black = VIN, Red = T+ duration in ms, Blue = T- duration, C1 = 0.001 µF

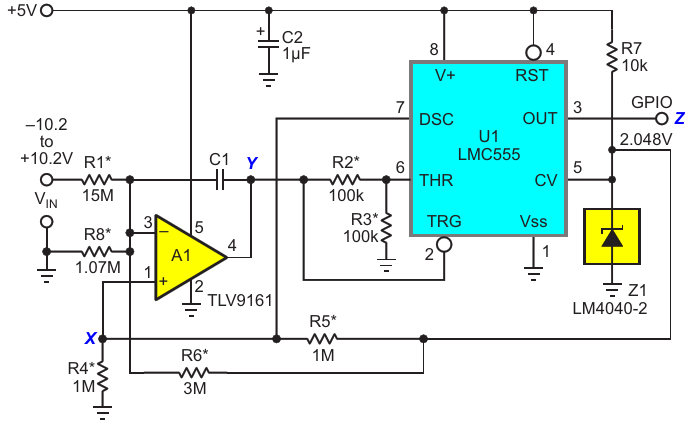

- Figure 4. A ±10-V VIN span is easily accommodated - if you can find a 15 MΩ precision resistor
