"Linear" PTC Thermistors Overcome NTC Temperature-Sensing Shortcomings

Texas Instruments TMP116 TMP61 TMP63 TMP64

Bill Schweber

Electronic Design

A family of PTC thermistors conquers the calibration and linearity errors associated with conventional NTC temperature devices.

Temperature is the most widely measured physical variable and designers have many sensing options, among them thermocouples, RTDs, solid-state current-output sensors, and thermistors, to cite just a few. Among these, negative-temperature-coefficient (NTC) thermistors are widely used for temperature sensing in industrial, automotive, medical, instrumentation, and consumer applications due to their low cost, wide range, and relative ease of interfacing.

However, NTC thermistors do have well-known drawbacks. Along with their large temperature coefficient of resistance (good), they have a highly nonlinear (albeit smooth) curve of resistance versus temperature (not good). As a result, circuit and system designers must implement one or more strategies to deploy them effectively. Such techniques include multipoint calibration, employing multiple thermistors with overlapping ranges, lookup tables (often aided by interpolation), or performing correction calculations based on the standard Steinhart-Hart equation (or a simplified regression polynomial), which models their transfer function.

Recognizing both their attractiveness and shortcomings, Texas Instruments (TI) has introduced a family of silicon-based positive-temperature-coefficient (PTC) thermistors – the complement of NTC devices – with what they maintain is 50% higher accuracy. For example, the TMP61 is a highly linear PTC thermistor with 10-kΩ nominal resistance at 25 °C, with ±1% maximum nonlinearity from 0 to 70 °C and a –40 to +125 °C operating range (Fig. 1).

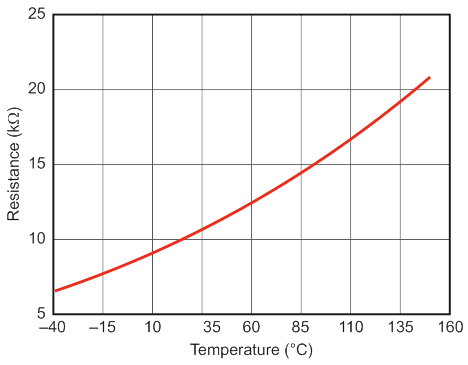

The typical temperature-versus-resistance transfer function for the TMP61 shows its fairly high degree of linearity.
Figure 1. The typical temperature-versus-resistance transfer function for the TMP61
shows its fairly high degree of linearity.

It offers consistent sensitivity across the temperature range with a temperature coefficient of resistance (TCR) of 6400 ppm/°C at 25 °C and 0.2% typical TCR tolerance across the operating range (the similar TMP63 has 100-kΩ nominal resistance at 25 °C, as does the 47-kΩ TMP64). Compared to NTC devices, the thermistors require little or no linearization circuitry or software, require only single-point calibration, have less resistance-tolerance variation, and offer higher sensitivity at high temperatures.

TI claims that by eliminating the need for additional linearization circuitry or redundant NTC thermistors, these PTC thermistors simplify design, lower system cost and reduce printed-circuit-board (PCB) layout size by at least 33% when compared to NTC thermistors.

As with all devices, and especially temperature sensors that are often in hostile environments, failure is indeed an option and possibility. Thermistors can be driven by a voltage or current source (Fig. 2), and while there are pros and cons to each drive approach, a short circuit could have system-wide implications. For this reason, the TI devices include a built-in “fail-safe” in the event of short-circuit failures.

As a resistive component, the thermistor can be driven using a voltage source (left) or current source (right). In practice, most voltage-driven circuits use a ratiometric arrangement to cancel the effects of source drift.
Figure 2. As a resistive component, the thermistor can be driven using a voltage
source (left) or current source (right). In practice, most voltage-driven
circuits use a ratiometric arrangement to cancel the effects of source drift.

Of course, physical sensor size is a factor in temperature sensing, as sensor thermal mass affects both response time and ability to site the sensor close to the point of interest. Among the available packages, the TMP61 is offered in 0.60- × 1.00-mm (0402 footprint compatible), 4.00- × 3.15-mm (TO-92S), and 0.80- × 1.20-mm (SOT-5X3) packages; the TMP63 comes in a 0.60- × 1.00-mm package, and other TMP packages are available. In addition, the 10-kΩ TMP61 and 100-kΩ TPM63 are available in automotive-grade versions. Prices begin at US$0.05 in 1,000-unit quantities.

TI's TMP6EVM evaluation kit for the TMP61 family is supported by a detailed User's Guide and PC-based Windows GUI.
Figure 3. TI’s TMP6EVM evaluation kit for the TMP61 family is supported
by a detailed User’s Guide and PC-based Windows GUI.

For test and evaluation, TI offers the TMP6EVM evaluation kit, which is powered via a USB connection or a CR2032 coin-cell battery (Fig. 3). This standalone module includes the company’s TMP116 digital sensor for local temperature reference along with two analog channels. The sensor section of the circuit board can be separated from the main board to emulate a system where the sensor is remotely located from the host controller (a common situation), while the LCD displays real-time streaming of temperature measurements at a 2-Hz update rate.
