New generation Toshiba BiCS FLASH adds layers, boosts capacity

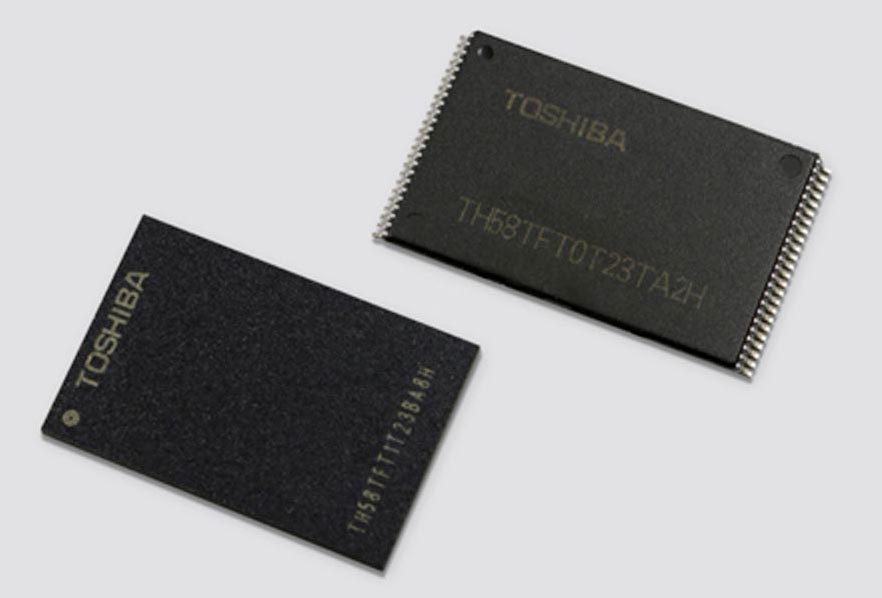

Toshiba Corporation unveiled the latest generation of its BiCS FLASH three-dimensional (3D) flash memory with a stacked cell structure, a 64-layer device that will be first in the world to start sample shipments today. The new device incorporates 3-bit-per-cell (triple-level cell, TLC) technology and achieves a 256-gigabit (32 gigabytes) capacity, an advance that underscores the potential of Toshiba’s proprietary architecture. Toshiba continues to refine BiCS FLASH, and the next milestone on the development roadmap is a 512-gigabit (64-gigabytes) device, also with 64 layers.
The new device succeeds the 48-layer BiCS FLASH, and its leading-edge 64-layer stacking process realizes a 40% larger capacity per unit chip size than 48-layer stacking process, reduces the cost per bit, and increases the manufacturability of memory capacity per one silicon wafer. 64-layer BiCS FLASH can meet demanding performance specs, and the new device will be used in applications that include enterprise and consumer SSD, smartphones, tablets and memory cards.
Since announcing the world’s first prototype 3D flash memory technology in June 2007, Toshiba has continued to advance development. The company is actively promoting BiCS FLASH to meet demand for larger capacity with smaller size.
Toshiba will produce the new 64-layer BiCS FLASH in the New Fab 2 at Yokkaichi Operations, which was officially opened earlier this month, and mass production of 64-layer BiCS FLASH is scheduled to start in the first half of 2017.`
