If the 317 and 337 swap places and the diodes reverse, Figure 3's circuit can work for negative current, too

Download PDF

Other Materials from the Main Document

• Article «Cross connect complementary current sources to reduce self-heating error»
• Figure 1. How to control amps of I_OUT with mA of I_C using legacy voltage regulators as current regulators where I_OUT = (V_ADJ - I_CR_C)/R_S
• Figure 2. LM317 reference variation with junction temperature as seen in page 5 of LM317 datasheet
• Figure 3. Cross connection reduces self-heating error because shunt regulator U2 carries most of the current, getting relatively hot, while U1, whose V_REF is in control, stays relatively cool and accurate

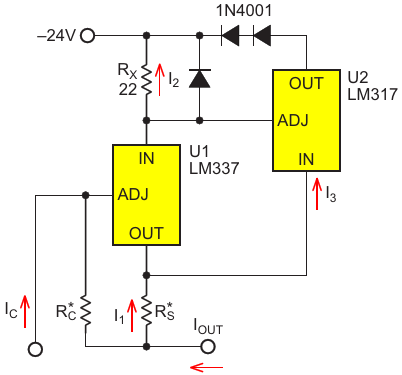

• Figure 4. If the 317 and 337 swap places and the diodes reverse, Figure 3's circuit can work for negative current, too
