Ultra-Compact Low Profile 2-Color Chip LEDs

Rohm » SML-D22MUW

Industry-small form factor contributes to thinner, more vibrant displays in industrial and consumer devices

ROHM has recently announced the availability of the industry's smallest class (1608 size) of 2-color chip LEDs. In addition to their breakthrough size, the SML-D22MUW features a special design that improves reliability along with a backside electrode configuration that supports high-resolution displays.


In recent years, chip LEDs are being increasingly used for numerical displays in industrial equipment and consumer devices. Conventional numerical displays utilize a single color to indicate numbers, but there is a growing need to change the color to make it easier to recognize abnormalities. However, this typically entails utilizing two separate LEDs, which doubles the mounting area along with development costs, or opting for a standard 2-color LED that also increases board size.

In contrast, proprietary technologies and processes allowed ROHM to integrate 2 chips in the same package size as conventional single-color LEDs, making it possible to emit multiple colors in a smaller footprint. Board space is reduced by 35% over standard 1.5 × 1.3 mm 2-color LEDs, contributing to thinner displays. And after taking into consideration usage conditions during reflow, countermeasures were adopted that prevents solder penetration within the resin package to ensure greater reliability.

Availability: Now

Pricing: $0.136/unit (3,000pcs)

Key Features

1. Class-leading compact size contributes to smaller, thinner devices

In addition to element miniaturization, the SML-D22MUW leverages PICOLED™ mounting and wire bonding technologies to mount 2 chips (red and green) in a compact 1.6 × 0.8 mm package – the same size as conventional single-color LEDs.

Also, the extremely close configuration of color elements results in excellent color mixing properties that make it possible to produce not only red and green colors, but a number of intermediate colors as well.

Ultra-Compact Low Profile 2-Color Chip LEDs
Conventional 2-color LED with side electrode configuration (left). SML-D22MUW with
bottom electrode configuration (right).

2. Solder penetration countermeasure ensures superior reliability

Incorporating a stopper called a ‘resist' before the gold plating process blocks the gold pattern (that features good wettability). This prevents solder penetration into the resin, eliminating failures due to short-circuits and contributing to greater reliability.

3. Backside electrode configuration supports high-resolution display

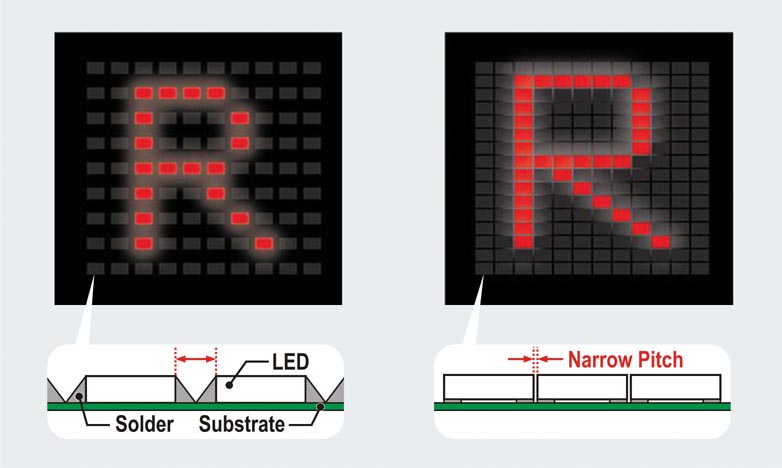

Adopting a backside electrode design allows mounting in narrow spaces, enabling high-definition display in dot matrix and other applications.

Part No. Forward Current
Forward Voltage
Emission Wavelength
Light Intensity
SML-D22MUW 5 2.0 570 10
5 1.9 620 16
(under development)
5 2.0 588 25
5 1.85 629 16
